商品の詳細:
|
| 機能: | 溶融アルミニウム液の注湯 | 注ぐ方法: | バキュム圧 |
|---|---|---|---|
| Ladle Lifting Capacity: | 5-100 tons | ひしゃくカバー: | カスタマイズ |
| おたまの傾斜角度: | 0-45° | 移動方法: | フォークリフト |
| 温度範囲: | 500〜800°C | 移転材料: | アルミニウム |
| ラドル・リップ: | 鋼 で 強化 さ れ た | Appearance: | Tea-pot Type |
| 加熱温度: | 900℃ | 絶縁されています: | そうだ |
| Using: | Transfer Molten Aluminum Liquid | Certifications: | ISO 9001:2015 And CE Certified |
| システムを傾けること: | 油圧傾くシリンダー | ||
| ハイライト: | aluminum molten metal ladle,teapot type metal pouring ladle,molten aluminum transfer ladle with handle |
||
Molten Aluminum Transfer Ladles for Transfer Aluminum Liquid
1. Genernal Profile
Being a well-established organization, we are presenting a wide range of Aluminium Transfer Ladle, which
is widely used in refining, casting workshops and melting for transferring the molten metal and enable molten
aluminum to be held at temperature for elongated time duration keeping metal clean.
2. Transporting Containers Description
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.
3. Hydeb Company Profile
Jinan Hydeb Thermal Tech Co., Ltd was established in January 2003, and now has 56 employees,among which there are 8 technical engineers.
The sales in 2020 is 50 million RMB.
Hydeb focus on one industry -- "aluminum casting".
Hydeb has a complete product line of aluminum casting equipment, all products are independent research and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid hydrogen measurement, until aluminum solution aging treatment equipments.
3. Transporting Containers Data
| Items | Parameters | Remarks |
| Maximum temperature of molten aluminum | 800℃ | |
| Maximum ladle lining temperature | 900℃ | |
| Natural temperature drop of molten aluminum | ≤18℃/h | For a 500-kg ladle; the lower the capacity, the higher the figure |
| Ladle shell surface temperature | ≤50℃ | |
| Ladle capacity | 1200 KG | The specific gravity of molten aluminum is set to 2.5t/m3 |
| Ladle body weight | Around 1500KG |
4. Transporting Containers Merits
-- Smooth Tilting Mechanism
-- Less Skin temperature
-- Long Refractory life
-- Maintenance free
-- Easy Handling
5. Transporting Containers Advantages
| 1 | Increased metal quality |
| 2 | Lower energy costs |
| 3 | Improved process efficiency |
| 4 | Reduced downtime and replacement costs |
| 5 | Customized designs |

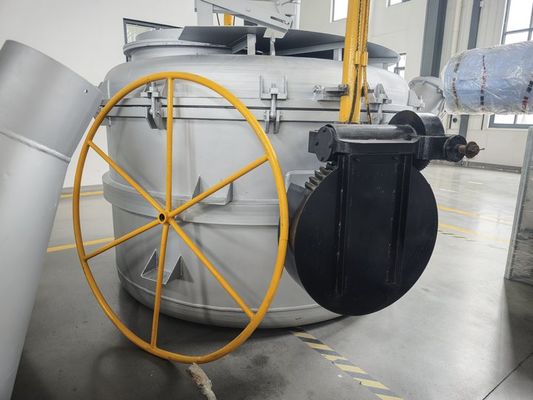

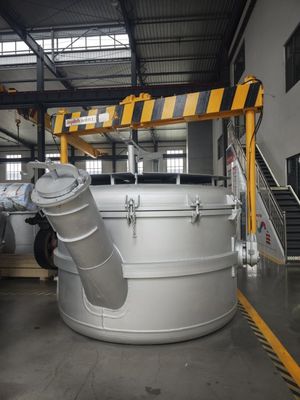

6. Transporting Containers Pictures
7. FRQ
Q1: I know nothing about this ladle, what kind of ladle I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this ladle, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this ladle during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
8. Models
| Type | HLB-15 | HLB-20 | HLB-30 | HLB-50 | HLB-80 | HLB-100 | HLB-120 | HLB-150 |
| Capacity | 150KG | 200KG | 300KG | 500KG | 800KG | 1000KG | 1200KG | 1500KG |
